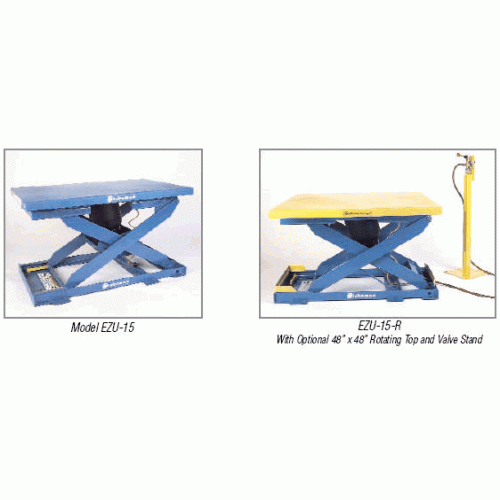

Bishamon EZU-15 Pneumatic Lift Table

  • Bishamon EZU-15 Pneumatic Lift Table
  • List Price: $4,560.00

    Our Price: $3390.00

  • Availability: Usually, it ships in 1-2 weeks.

Bishamon EZU-15 Pneumatic Lift Table offers a streamlined solution for raising, lowering, and positioning loads using air power. Free of electrical and hydraulic components, this lift table is low-maintenance and exceptionally suitable for environments where cleanliness is paramount and the risk of sparks poses a hazard. It delivers reliable performance with minimal upkeep, making it an ideal choice for safe and efficient operations.

Travel: 21.25"
Lowered Height:  8.75"
Raised Height: 30"
Standard Platform:  30" wide x 51" long
Shipping Weight: 450 pounds
80 PSI (1,500 pound capacity) and 90 PSI (1,700 pound capacity).
Firestone Air stroke Actuator raises and lowers the table platform to vertically position the load to the desired height
Durable and attractive polyester powder coating adds life and superior corrosion resistance to the finish
Heavy-duty structural steel construction with rugged base frame
Entrapped rollers on base and platform for added stability
Dual attached maintenance blocks
High quality brass hand lever controls allows easy operation
Clean design with minimum of maintenance needed
Fork truck transportable without the need for additional options
EZ UP Pneumatic Lift Table uses shop air to lift and position loads for loading and unloading
Features a convenient rotating platform that eliminates the need for workers to reach, stretch or walk around the lift, thus minimizing worker strain and improving efficiency
Works well as a pallet positioner because of its rotating surface
Pneumatic lifts contain no electrical or hydraulic components
Made with high-quality structural steel and feature a Firestone airstroke actuator for lifting and lowering the load
These low maintenance lifts include entrapped scissor rollers for additional stability.
Platform is controlled by a three position hand lever that raises and lowers it to the desired height
The rotating models use a secured, ball bearing center pivot that ensures smooth movement
Features hinged maintenance bars powder coated yellow for safety
Durable powder finish that protects the steel from tough working conditions
Travel: 21.25" ♦ Lowered Height: 8.75" ♦ Raised Height: 30" ♦ Standard Platform: 30" wide x 51" long ♦ Shipping Weight: 450 pounds ♦ 80 PSI (1,500 pound capacity) and 90 PSI (1,700 pound capacity). ♦ Firestone Air stroke Actuator raises and lowers the table platform to vertically position the load to the desired height ♦ Durable and attractive polyester powder coating adds life and superior corrosion resistance to the finish ♦ Heavy-duty structural steel construction with rugged base frame ♦ Entrapped rollers on base and platform for added stability ♦ Dual attached maintenance blocks ♦ High quality brass hand lever controls allows easy operation ♦ Clean design with minimum of maintenance needed ♦ Fork truck transportable without the need for additional options ♦ EZ UP Pneumatic Lift Table uses shop air to lift and position loads for loading and unloading ♦ Features a convenient rotating platform that eliminates the need for workers to reach, stretch or walk around the lift, thus minimizing worker strain and improving efficiency ♦ Works well as a pallet positioner because of its rotating surface ♦ Pneumatic lifts contain no electrical or hydraulic components ♦ Made with high-quality structural steel and feature a Firestone airstroke actuator for lifting and lowering the load ♦ These low maintenance lifts include entrapped scissor rollers for additional stability. ♦ Platform is controlled by a three position hand lever that raises and lowers it to the desired height ♦ The rotating models use a secured, ball bearing center pivot that ensures smooth movement ♦ Features hinged maintenance bars powder coated yellow for safety ♦ Durable powder finish that protects the steel from tough working conditions
