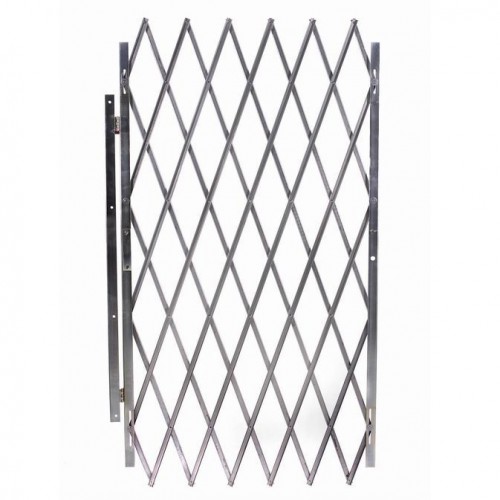

Illinois Engineered Heavy Duty Folding Door Gate - D49 are perfect for securing high-traffic hallways or entryways up to four (4) feet wide, in any type of business or industry. These gates pivot on hinges, so they open in or out, just like a door, but also provide the enhanced air circulation and visibility of a standard steel folding gate. Folding Door Gates can be mounted on the left or right side, and collapse to pivot completely out of the way, providing safe door openings that are 100% clear of obstructions. Installs in less than 30 minutes!

♦  Width:  Up to 4' wide

♦  Collapsed Height:  49" high

♦  In Use Height:  43" high
♦  Stacked Width:  7"

♦  Weight:  25 pounds
♦  Channel:  3/8″ x 3/4″, 14 Gauge Galvanized
♦  Heavy-duty 12-gauge steel 1-1/2”x 1-1/2” vertical angle frame

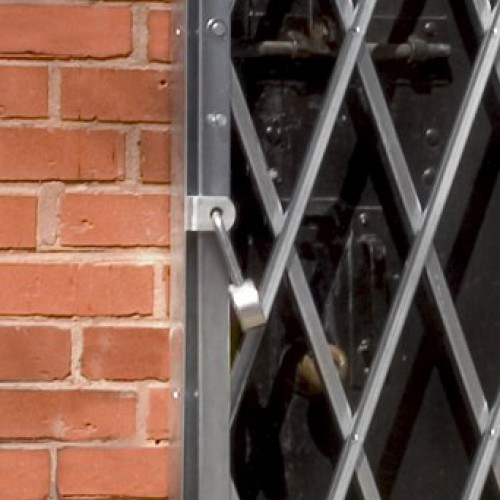

♦  Locking Bar with padlock hasp (padlock sold separately)

♦  Locking Direction:  Locks to the right or to the left.
♦  Install in Door Jamb or Face-mount

Options:
♦ Padlock:  2” hardened steel with plated shackle
♦ School Strap:  Allows gates to be locked in retracted position
♦ Free Standing Post:  2" x 2" x 8' tall post with 6" base plate allows mounting without attaching to building.
♦ H Bracket:  Mounts overhead in center of gate to provide additional security and rigidity.

Illinois Engineered Heavy Duty Folding Gates are specialized security gates often used for commercial, industrial, and even residential settings. These gates are designed to provide secure access control and are known for their durability and sturdiness. Below are some of the uses and benefits of using these folding gates:

Uses:

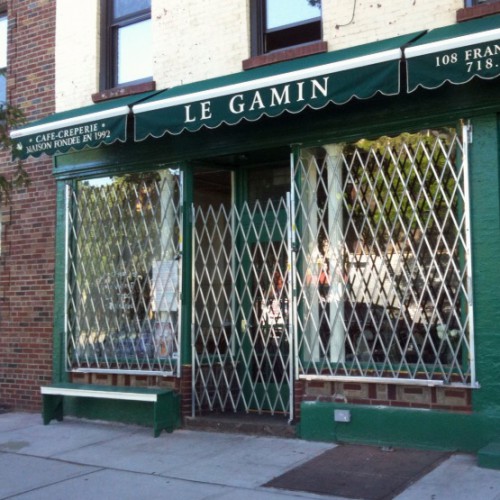

♦  Retail Stores and Malls: Protect storefronts during non-business hours or section-off areas for maintenance or repair.
♦  Industrial Units and Warehouses: Provide a barrier at loading docks or sections off restricted areas.
♦  Residential Buildings: Used in condominiums, apartments, or homes where additional security is desired, especially at entry points.
♦  Schools and Institutions: Secure corridors, hallways, or specific rooms during non-operational hours.
♦  Parking Garages: Control vehicular access or designate specific areas.
♦  Temporary or Seasonal Use: Secure areas during specific events or times.

Benefits:
♦  Security: The primary benefit is added security. The gates act as deterrents against unauthorized entry, break-ins, and theft.
♦  Durability: Designed for heavy-duty use, these gates are built to last, resisting wear and tear even with frequent use.
♦  Visibility: Unlike solid barriers, the open design allows for visibility. This means businesses can display products even when closed, and security personnel can monitor areas without obstructions.
♦  Ventilation: The open grill design ensures that airflow is not restricted, which can be especially important in indoor settings or parking garages.
♦  Ease of Use: These gates can be easily folded and unfolded as needed, providing flexibility in access control. They typically come with smooth gliding wheels, making them easy to move and position.
♦  Versatility: They can fit various opening sizes and be used indoors and outdoors.
♦  Cost-effective: Compared to other security solutions like electronic barriers or manned security posts, these gates can be more cost-effective in the long run, especially considering their durability.
♦  Low Maintenance: Being engineered for heavy-duty use and with fewer mechanical parts than electronic alternatives, these gates typically require less frequent maintenance.

Note: Always follow the manufacturer's instructions and safety guidelines when using this product.
